140W Fast Charging Power Bank RD08
20,000mAh Large Capacity 140W Ultra-Fast Charging, Get a Full Charge Instantly
Meet the RD08 Power Bank, your all-scenario high-performance power source. It combines a 20,000mAh large capacity with 140W super-fast charging technology. The bidirectional Type-C port supports up to 100W input for rapid recharging and 140W output to efficiently run or charge your laptop, phone, and other devices. With an intelligent controller, broad compatibility, and a multi-protection safety system, the RD08 delivers the perfect blend of speed, capacity, and reliability for an efficient mobile power solution in any scenario.
Product Overview
Product Specifications
Product Model
RD08
Product Dimensions
158x54x46mm
Standards Compliance
GB 4943.1-2022 GB 31241-2022
Battery Type
Lithium-ion Battery
Cell Capacity
20000mAh
Rated Capacity
12000mAh(5V3A)
Battery Energy
5000mAh/14.4/72Wh
Maximum Output
140W Max
Product Features
Fast-Charging Compatibility
Bidirectional Type-C Wide-Voltage Charging
High-Performance Processing
Advanced Multi-Processor Design Enables High-Speed Parallel Processing
Safety Protection
Multi-Layer Protection Design to Safeguard Against Over-Charge, Over-Discharge, Over-Temperature, and Short-Circuit
Premium Core
High-Quality 21700 Lithium-Ion Cells and Charge/Discharge Chips

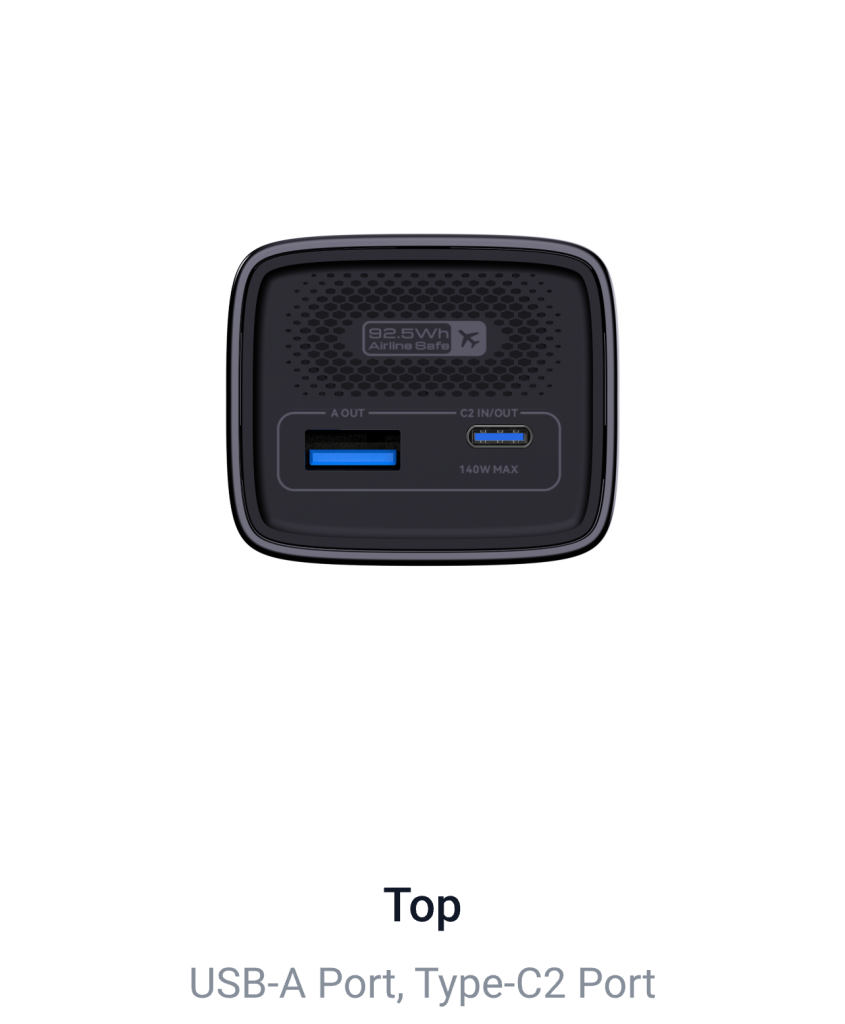

Interface Specifications

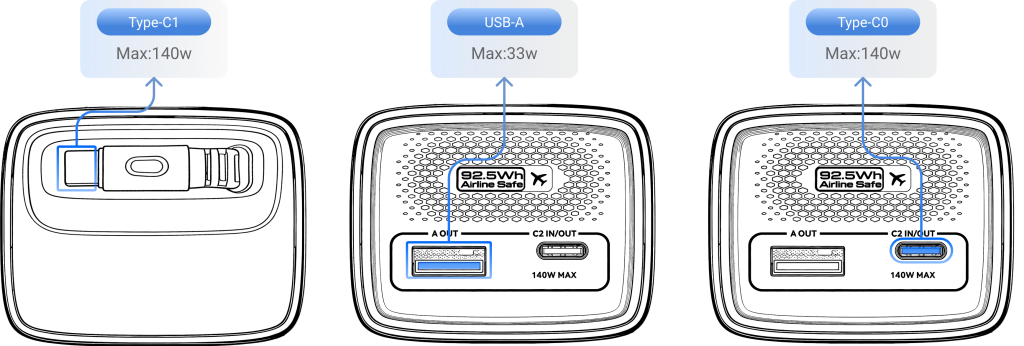

·Single Port Output Power

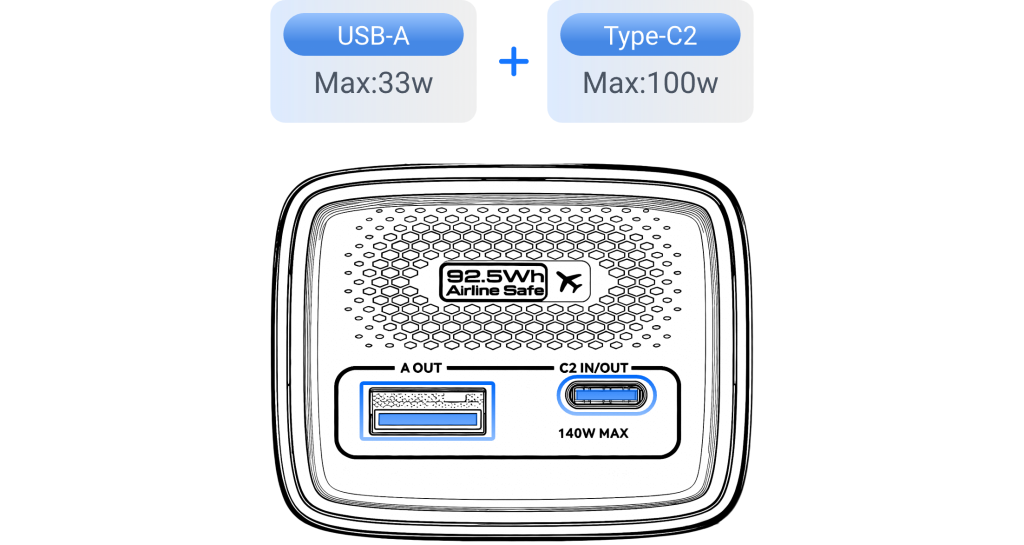

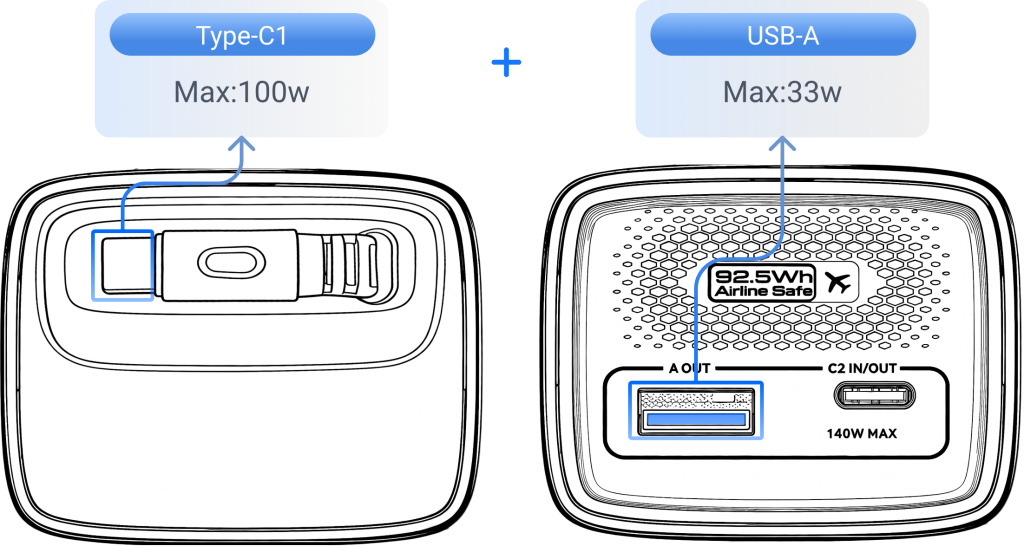

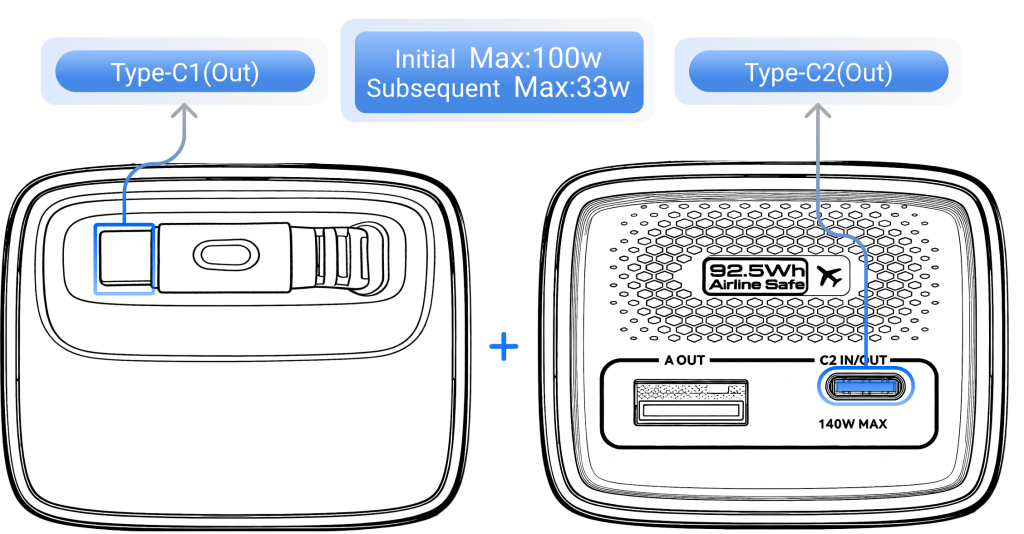

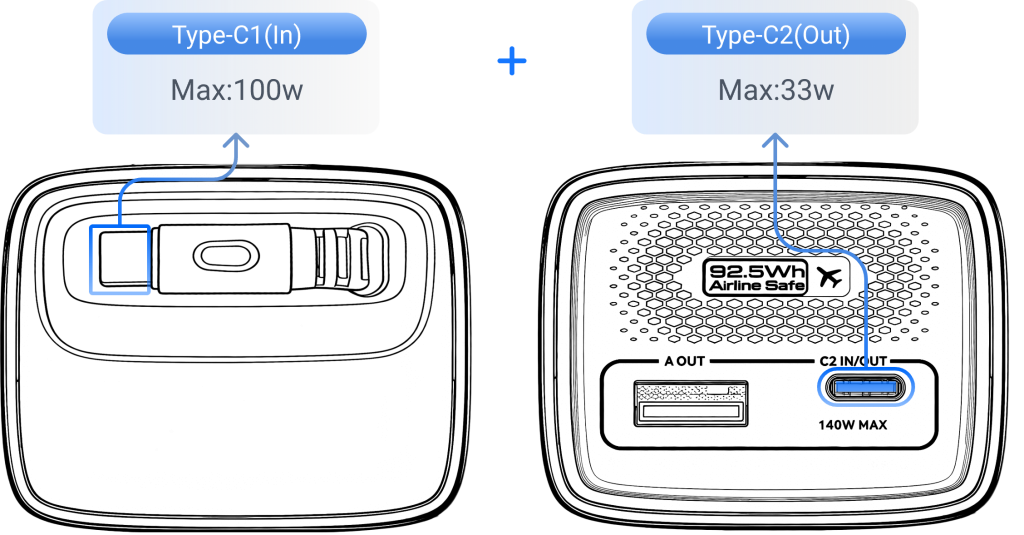

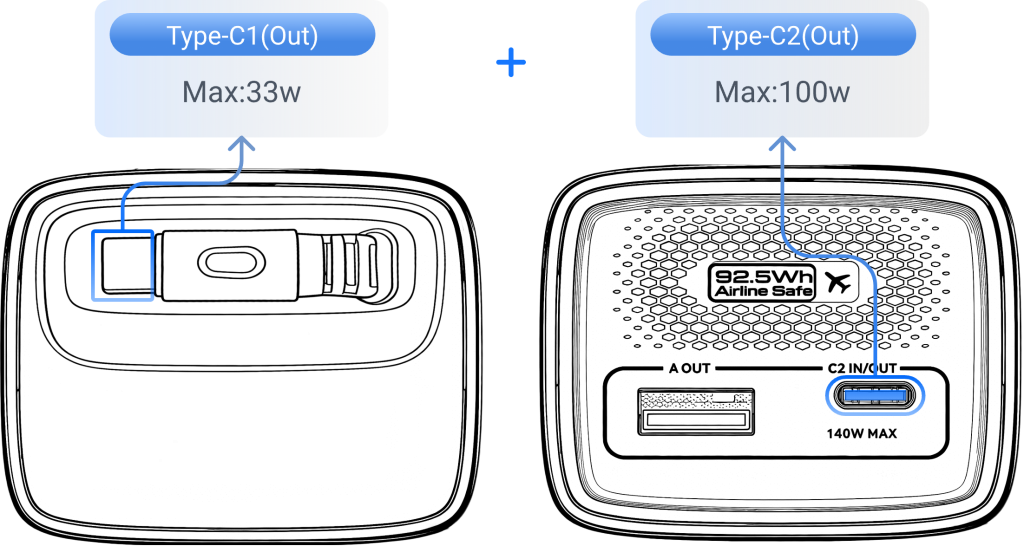

·Dual Port Output Power

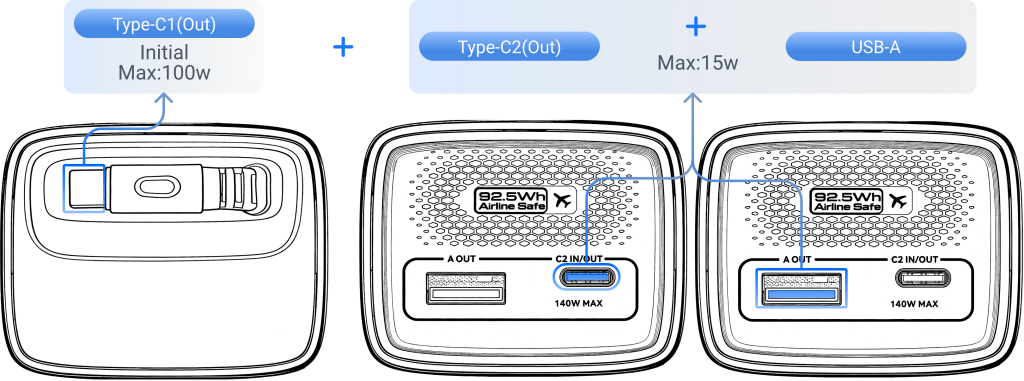

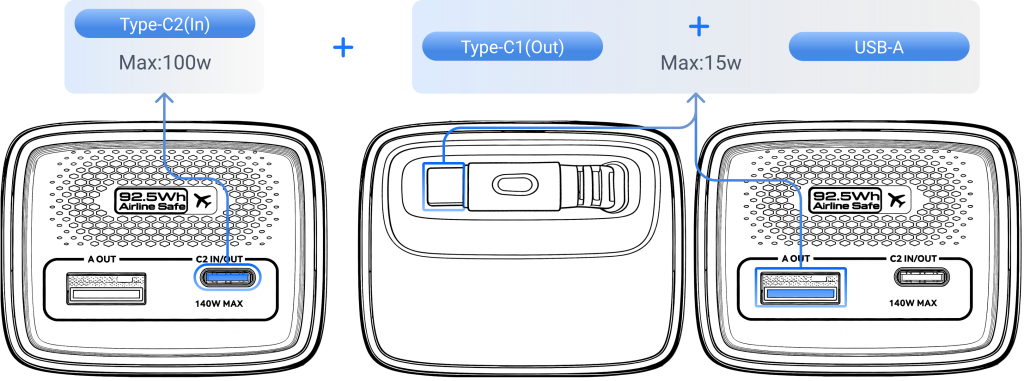

Triple Port Output Power

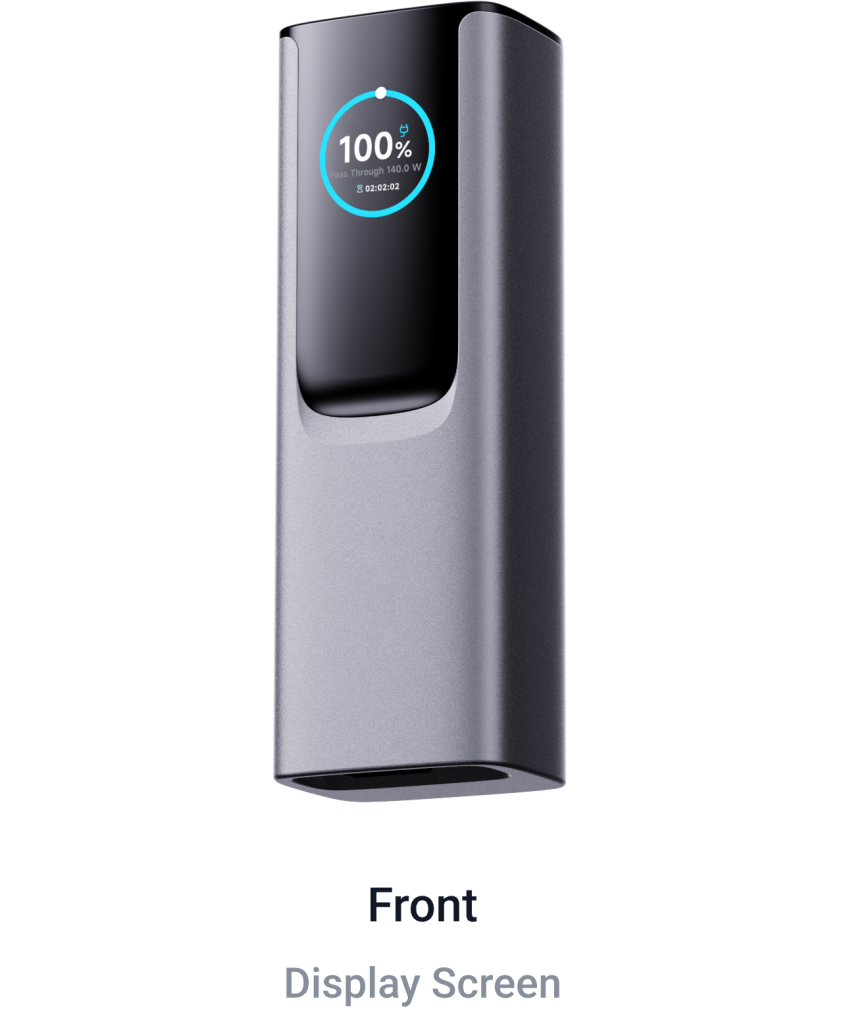

Screen Introduction
Normal -Charging While Discharging
Normal – Charging While Discharging – Low Current Mode
Normal – Charging
Normal – Discharging
Normal – Discharging – Low Current Mode
Normal – Discharging – Low Battery Mode
Dashboard
Dashboard (Click to Switch)
Dashboard – Low Current Mode (Double-click to Enter)
Dashboard – Low Current Mode (Double-click to Enter)
Over-Temperature Protection
Over-Voltage Protection
Under-Voltage Protection
Over-Current Protection
Low-Temperature Protection

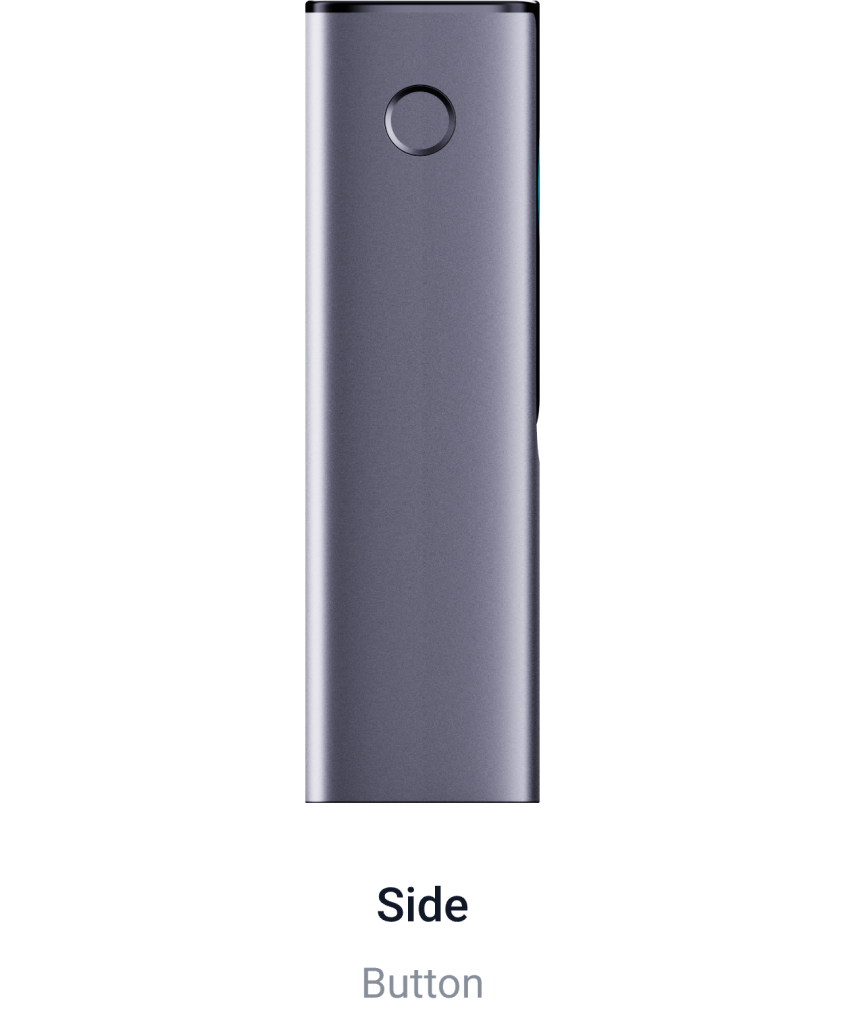

Button Functions
| Screen Status | Button Operation | Action |
| Any (e.g., Home screen) | Click | Switch Dashboard |
| Any (e.g., Home screen) | Double-click | Toggle Low-current Mode (USB-A port discharges at 5V for 2 hours). Double-click again to exit. |
| Any (e.g., Home screen) | None | Screen turns off automatically after 30 seconds of inactivity. |
Hazardous Substances Information
| Pb | Hg | Cd | Cr VI | PBB | PBDE | |
| PCBA | X | O | O | O | O | O |
| Plastic | O | O | O | O | O | O |
| Battery | O | O | O | O | O | O |
| Accessories | O | O | O | O | O | O |
| Metal | O | O | O | O | O | O |
This table is prepared in accordance with SJ/T 11364.
○: Below the threshold limit defined in GB/T 26572.
X: Exceeds the threshold limit in at least one homogeneous material.
Safety Instructions
Do not disassemble, crush, puncture, or expose the product to fire.
Discontinue use immediately if the product shows signs of significant swelling.
Avoid leaving the product in an unattended vehicle or in direct sunlight, especially in hot weather.
Do not use or store the product in high-temperature environments.
Dispose of the product as electronic waste at a designated collection point; do not dispose of it with household trash.
Ensure proper ventilation during charging/discharging. Avoid stacking devices during prolonged charging to prevent overheating.
Do not submerge the product in water. Do not use the product if it has been water-damaged.
Important Usage Guidelines
1、For the first use, please fully charge the battery.
3、Do not leave the product unattended while charging. Please unplug it when leaving for an extended period.
5、Keep out of reach of children. This is not a toy; children are prohibited from using or playing with it.
7、For long-term storage, charge the battery to 50%-70% and store it in a cool, dry place. Avoid storing at full charge or zero charge.
2、Always use a compatible charger and data cable for charging and discharging.
4、Disconnect the cable once fully charged to preserve battery health.
6、If the button shows no power indication, connect to an external charger (it may be in protection mode)
8、Use multi-port charging cables with caution.
Warranty & Service Policy
Warranty Coverage
7-Day Policy: For performance malfunctions within 7 days of purchase, you are eligible for a full refund (based on invoice price), free replacement, or repair.
15-Day Policy: For malfunctions within 15 days, we provide a free replacement (same model/specifications) or repair.
12-Month Warranty: A 12-month warranty from the date of purchase covers manufacturing defects under normal use,including free repair services.
Extended Scenarios: If a product remains faulty after two repair attempts under warranty, you may request a replacement. A refund may be issued if replacement is unavailable (subject to depreciation calculation from invoice date).
Proof of Purchase Required
Valid original invoice and warranty certificate must be provided when requesting repair, replacement, or return services.
Non-Warranty Cases
Paid repair services are available for damages resulting from:
• Accidental damage (e.g., drops, water exposure)
• Unauthorized modifications or repairs
• Missing or invalid proof of purchase (invoice/warranty certificate)
• Force majeure (e.g.,natural disasters)
• Any service above will be charged to provide.
